Permanent Mold Aluminum Casting

What is Permanent Mold Aluminum Casting?

Permanent mold aluminum casting is a sophisticated aluminum forming process that utilizes reusable steel molds to produce complex aluminum components with exceptional dimensional accuracy and surface finish quality. Unlike sand casting methods, permanent mold casting creates components with tighter tolerances, smoother surfaces, and superior mechanical properties.

The process involves pouring a molten aluminum alloy into precision-engineered steel molds under controlled conditions. As the aluminum solidifies within these durable molds, it adopts the exact shape of the cavity while achieving excellent density and structural integrity throughout the casting. This results in components with consistent dimensions, minimal porosity, and excellent mechanical characteristics.

What separates permanent mold casting from die casting is the way metal flows into the mold. In permanent mold casting, the metal enters the cavity through gravity or low pressure, rather than being injected at high pressure. This creates less turbulence during the fill, resulting in fewer entrapped gases and superior metallurgical properties in the finished parts.

1. Design & Engineering Support

Our process begins with thorough design analysis. Our engineering team works directly with your specifications to optimize your part for the permanent mold casting process.

2. Mold Production

Our expert toolmakers craft precision steel molds designed specifically for your component. These molds are engineered  to ensure optimal metal flow and complete cavity filling.

3. Material Selection

We offer 7 aluminum alloys to match your exact performance requirements, whether prioritizing strength, corrosion resistance, thermal conductivity, or machinability.

4. Melting & Metal Preparation

We prepare the aluminum alloy to precise  temperatures. Our advanced analysis ensures every batch meets exacting standards before casting begins.

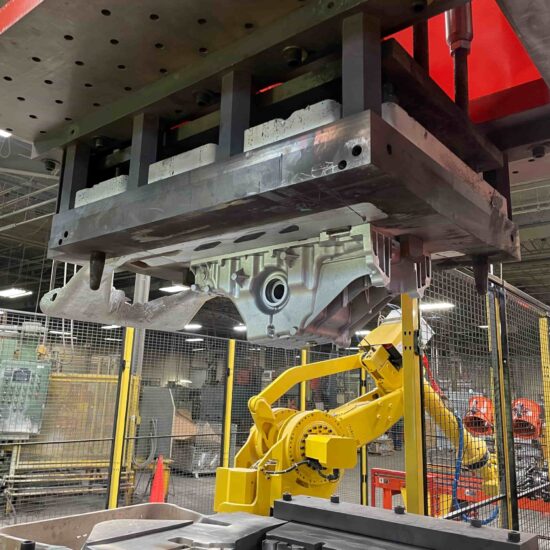

5. Casting Process

The prepared molten aluminum is carefully poured into the preheated permanent molds. Our proprietary techniques control the fill rate and solidification patterns to minimize defects and ensure complete mold filling.

6. Cooling & Solidification

The filled molds undergo a controlled cooling process based on the specific alloy and part geometry. This critical stage is carefully monitored to achieve optimal microstructure and mechanical properties.

7. Extraction & Initial Inspection

Once solidified, the castings are removed from the molds and undergo preliminary inspection for dimensional accuracy and surface quality.

8. Secondary Operations

Depending on your specifications, castings may undergo various finishing operations including:

• Heat treatment to enhance mechanical properties
• CNC machining for tight-tolerance features
• Surface finishing treatments
• Powder coating or anodizing
• Assembly with other components
• Leak testing and quality verification

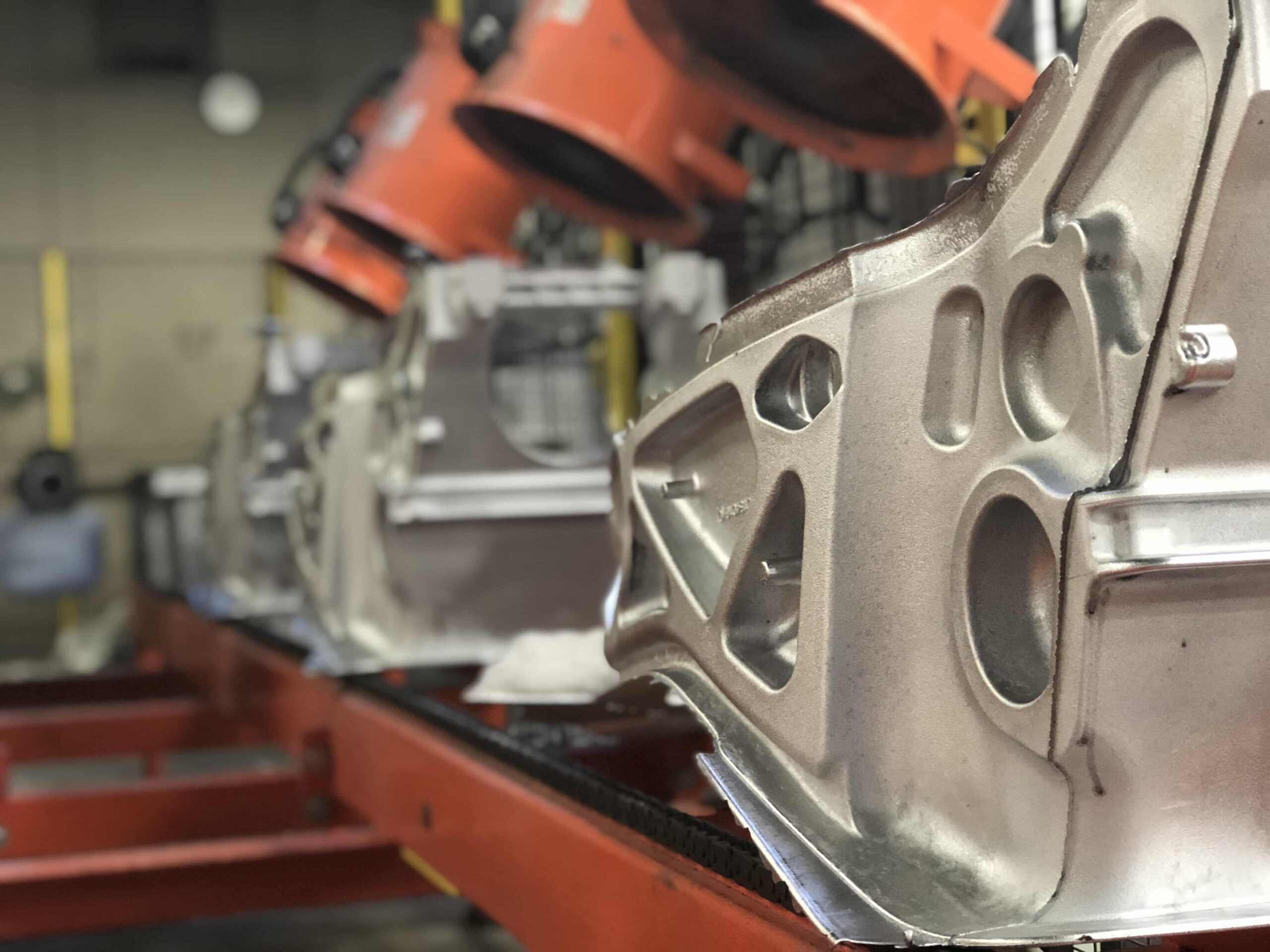

Advantages of Permanent Mold Aluminum Casting at Watry Industries

Superior Integrity

Our permanent mold process produces castings with excellent density, minimal porosity, and superior mechanical properties compared to other casting methods. This translates to components with higher strength-to-weight ratios and improved fatigue resistance.

Exceptional Dimensional Accuracy

Our permanent mold castings offer precision that rivals machined components but at significantly lower production costs for complex geometries.

Outstanding Surface Finish

Our castings typically achieve surface finish requirements without secondary operations, reducing or eliminating the need for additional finishing steps and lowering your total component cost.

Excellent Repeatability

The permanent steel molds ensure consistent dimensions across production runs of thousands or even tens of thousands of parts, maintaining quality from the first piece to the last.

Cost-Effective Production

For medium to high-volume production runs, permanent mold casting offers significant economic advantages over machining from solid stock, with material utilization rates exceeding 90% and minimal secondary operations required.

Design Flexibility

Our process, led by our engineering team, accommodates complex geometries, undercuts, and internal features that would be prohibitively expensive to machine.

Environmental Benefits

Permanent mold casting generates minimal waste, uses recyclable materials, and consumes less energy than comparable manufacturing methods, supporting your sustainability initiatives.

Production Scalability

Our facilities can accommodate production volumes from 100 pieces to 100,000+ annually, with the ability to scale as your needs evolve.

Engineering Partnership

We don’t just manufacture parts—we collaborate with your team to optimize designs for improved performance, reduced weight, and cost savings through our Design for Manufacturability (DFM) expertise.

Industry-Leading Delivery

Our efficient processes and dedicated capacity enable competitive and consitent delivery times that keep your production schedules on track.

Ready to Transform Your Casting Design into Reality?

Discover why industry leaders trust Watry Industries for their most demanding permanent mold aluminum casting projects. Our team is ready to evaluate your specifications and provide expert recommendations to optimize your component performance while maximizing cost efficiency.

Take the Next Step:

Click the button below to speak with a Watry aluminum casting expert about your project or submitting your RFQ today. Or, if you would like contact us directly, you may call (920) 457-4886 or email us at sales@watry.com.  We look forward to helping ensure your next casting project is a success.
